EtraLED-PHI-8550 for Philips Modular Passive Star LED Heat Sink Φ85mm

Availability:
Quantity:

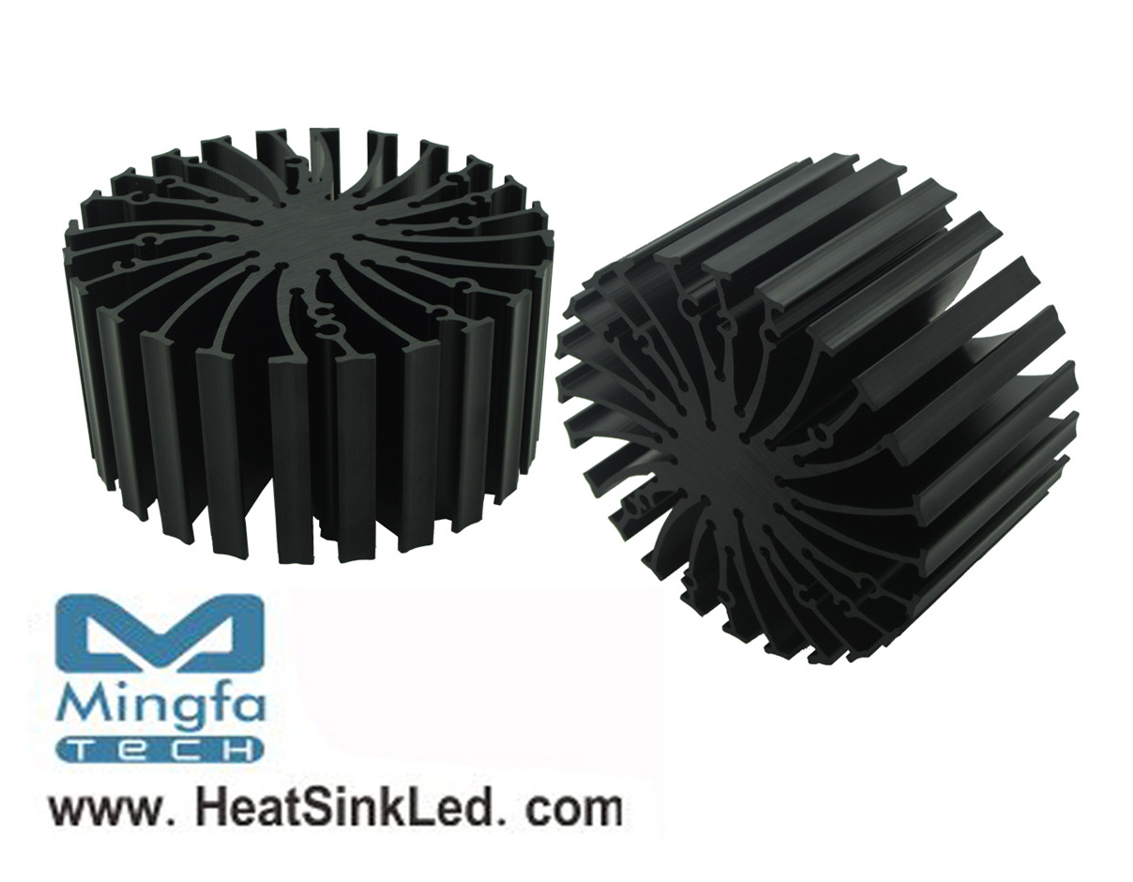

EtraLED-PHI-8550 for Philips Modular Passive Star LED Heat Sink Φ85mm

* The EtraLED-PHI-8550 Philips Modular Passive LED Coolers are specifically designed for luminaires using the Philips LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1400 to 4000 lumen.
* Thermal resistance range Rth 1.5°C/W.
* Modular design with mounting holes foreseen for direct mounting of Philips SLM engines.
* Diameter 85mm - standard height 50mm  Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

EtraLED-PHI-8550 for Philips Modular Passive Star LED Heat Sink Φ85mm.pdf
