EtraLED-OSR-8520 for Osram Modular Passive LED Cooler Φ85mm

Availability:
Quantity:

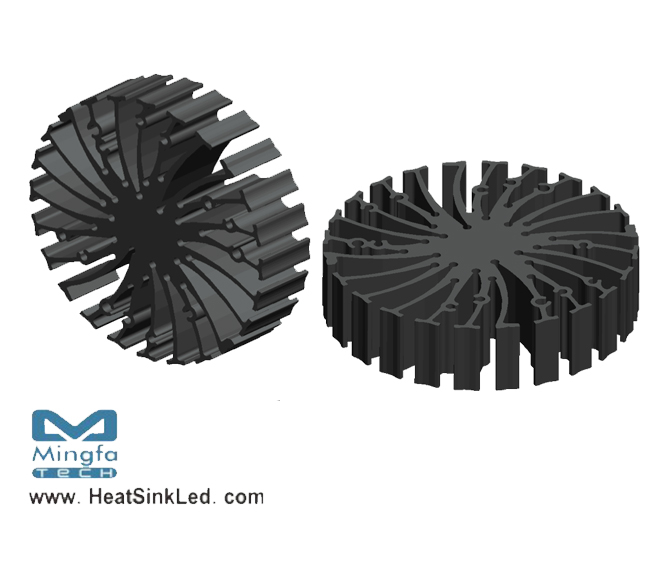

EtraLED-OSR-8520 for Osram Modular Passive LED Cooler Φ85mm

* The EtraLED-OSR-8520 Osram Modular Passive Star LED Heat Sink are specifically designed for luminaires using the Osram LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 700 to 2500 lumen.
* Thermal resistance range Rth 2.0°C/W.
* Modular design with mounting holes foreseen for direct mounting of Osram SOLERIQ P9,SOLERIQ S13 and SOLERIQ S19 LED engines.
* Diameter 85mm - standard height 20mm  Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

EtraLED-OSR-8520 - Osram Modular Passive Star LED Heat Sink Φ85mm.pdf
