EtraLED-OSR-4880 for Osram Modular Passive LED Cooler Φ48mm

Availability:
Quantity:

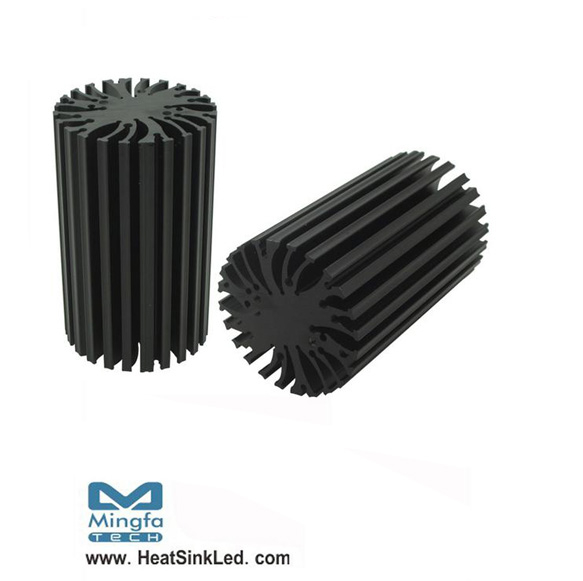

EtraLED-OSR-4880 for Osram Modular Passive LED Cooler Φ48mm

* The EtraLED-OSR-4880 Osram Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Osram LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 800 to 1600 lumen.
* Thermal resistance range Rth 3.6°C/W.
* Modular design with mounting holes foreseen for direct mounting of Osram SOLERIQ P6,SOLERIQ S13 and PrevaLED Core LED engines.
* Diameter 48mm - standard height 80mm Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

EtraLED-OSR-4880 Osram Modular Passive Star LED Heat Sink Φ48mm.pdf
