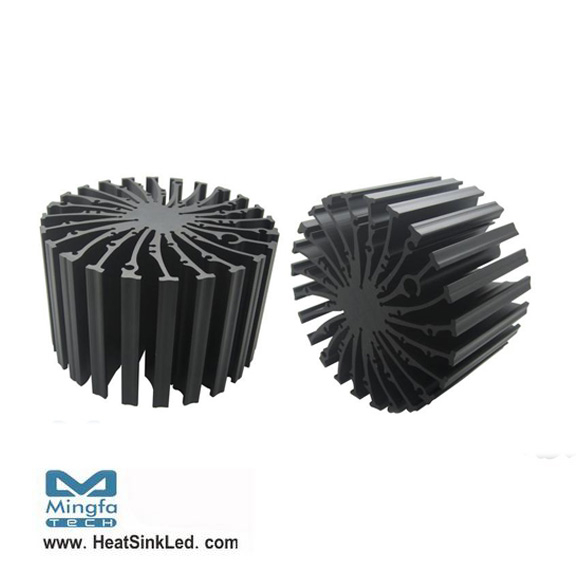

* The EtraLED-OSR-13080 Osram Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Osram LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 3000 to 8200 lumen.
* Thermal resistance range Rth 0.7°C/W.
* Modular design with mounting holes foreseen for direct mounting of Osram SOLERIQ P9,SOLERIQ S13 and SOLERIQ S19 LED engines.
* Diameter 130mm - standard height 80mm Other heights on request.
* Extruded from highly conductive aluminum.
