EtraLED-OSR-11050 for Osram Modular Passive LED Cooler Φ110mm

Availability:
Quantity:

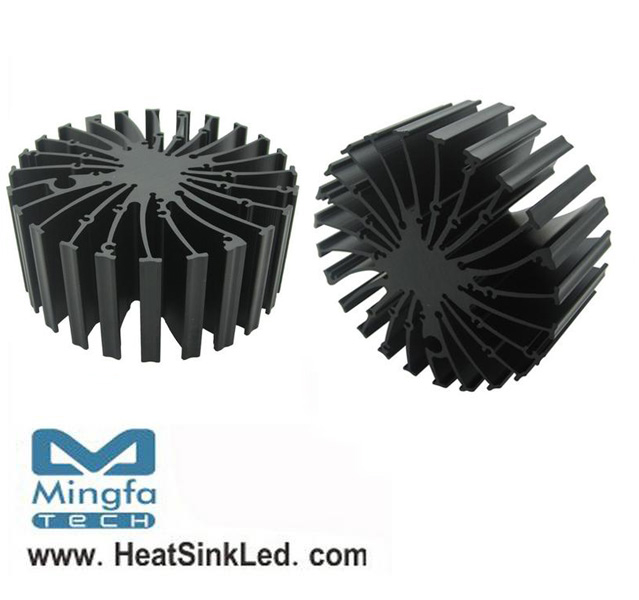

EtraLED-OSR-11050 for Osram Modular Passive LED Cooler Φ110mm

* The EtraLED-OSR-11050 Osram Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Osram LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2200 to 5500 lumen.
* Thermal resistance range Rth 1.1°C/W.
* Modular design with mounting holes foreseen for direct mounting of Osram SOLERIQ P9,SOLERIQ S13 and SOLERIQ S19 LED engines.
* Diameter 110mm - standard height 50mm Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

EtraLED-OSR-11050 Osram Modular Passive Star LED Heat Sink Φ110mm.pdf
