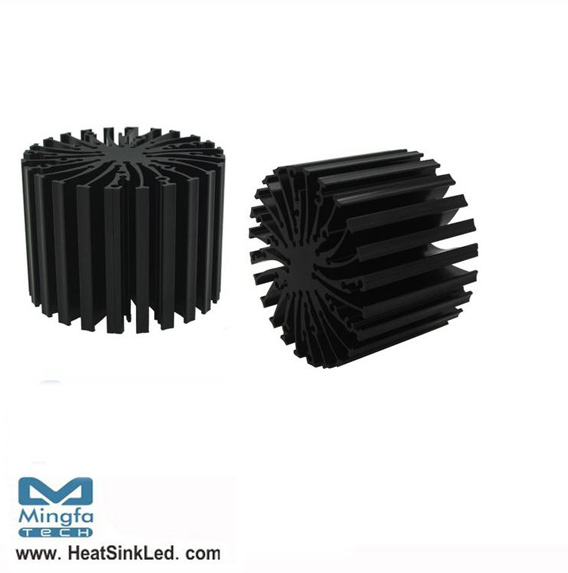

* The EtraLED-NIC-7050 Nichia Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Nichia LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1000 to 2700 lumen.
* Thermal resistance range Rth 2.2°C/W.
* Modular design with mounting holes foreseen for direct mounting of Nichia COB LED engines.
* Diameter 70mm - standard height 50mm Other heights on request.
* Extruded from highly conductive aluminum.
