EtraLED-NIC-4880 Nichia Modular Passive Star LED Heat Sink Φ48mm

Availability:
Quantity:

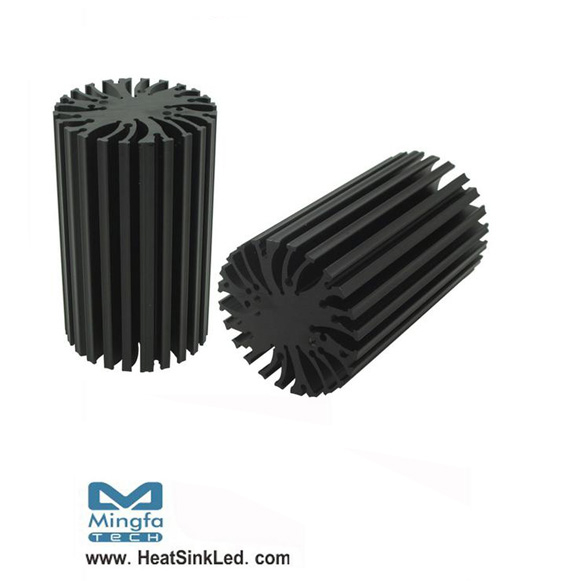

EtraLED-NIC-4880 Nichia Modular Passive Star LED Heat Sink Φ48mm

* The EtraLED-NIC-4880 Nichia Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Nichia LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 800 to 1700 lumen.
* Thermal resistance range Rth 3.6°C/W.
* Modular design with mounting holes foreseen for direct mounting of Nichia COB LED engines.
* Diameter 48mm - standard height 80mm  Other heights on request.
* Extruded from highly conductive aluminum.


Down PDF

EtraLED-NIC-4880 Nichia Modular Passive Star Heat Sink Φ48mm.pdf
