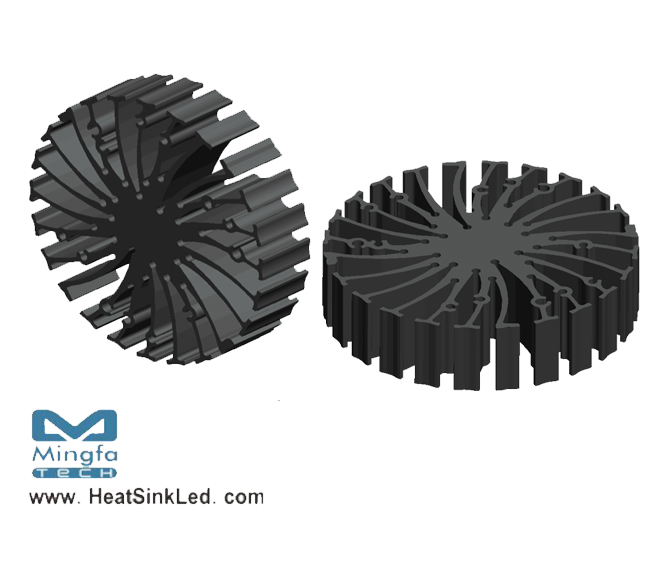

EtraLED-LUN-8520 for Luminus Xnova Modular Passive LED Cooler Φ85mm

Quantity:
EtraLED-LUN-8520 for Luminus Xnova Modular Passive LED Cooler Φ85mm

* The EtraLED-LUN-8520 Luminus Modular Passive Star LED LED Heat Sinks are specifically designed for luminaires using the Luminus LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 850 to 3000 lumen.
* Thermal resistance range Rth 2.0°C/W.
* Modular design with mounting holes foreseen for direct mounting of Luminus Xnova™  COB LED engines.
* Diameter 85mm - standard height 20mm Other heights on request.
* Extruded from highly conductive aluminum.


Down PDF

EtraLED-LUN-8520 Luminus Modular Passive Star Heat Sink Φ85mm.pdf
