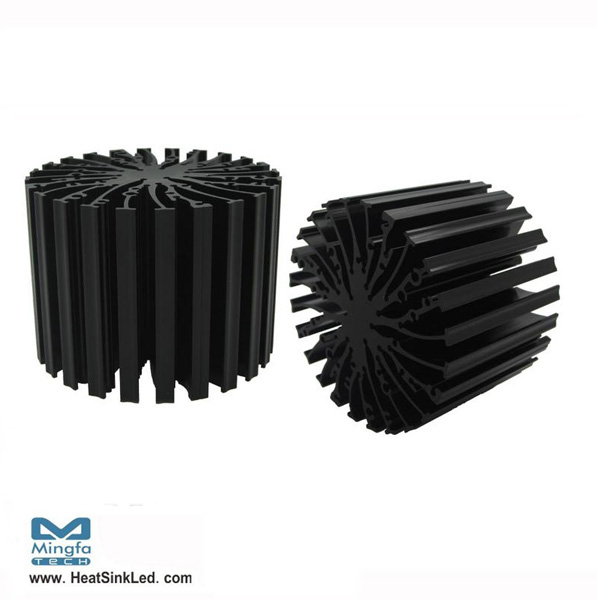

* The EtraLED-LUME-9680 Lumens Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Lumens LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2500 to 5000 lumen.
* Thermal resistance range Rth 0.92°C/W.
* Modular design with mounting holes foreseen for direct mounting of Lumens ERC1820,ERC2530，ERC2540, ERC3050 and AC-ALL series LED engines.
* Diameter 96mm - standard height 80mm Other heights on request.
* Extruded from highly conductive aluminum.
