EtraLED-LUME-8520 Lumens Modular Passive Star LED Heat Sink Φ85mm

Availability:
Quantity:

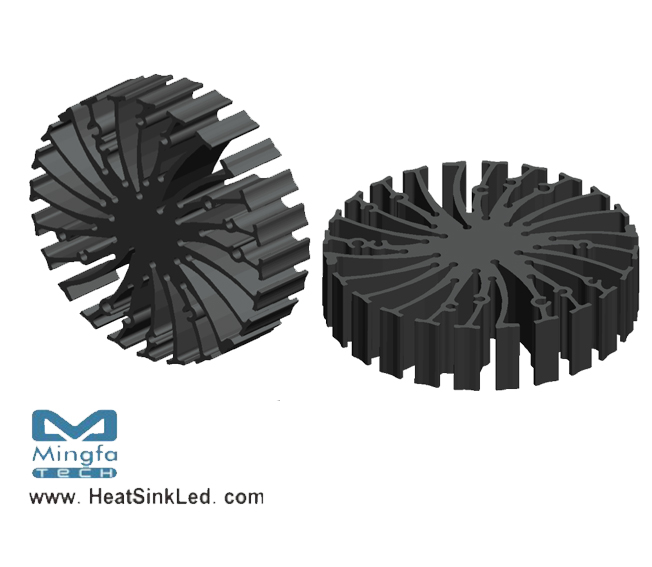

EtraLED-LUME-8520 Lumens Modular Passive Star LED Heat Sink Φ85mm

* The EtraLED-LUME-8520 Lumens Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Lumens LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1000 to 2800 lumen.
* Thermal resistance range Rth 2.0°C/W.
* Modular design with mounting holes foreseen for direct mounting of Lumens ERC1507 ERC1512and ERC1820 LED engines.
* Diameter 85mm - standard height 20mm Other heights on request.
* Extruded from highly conductive aluminum.


Down PDF

EtraLED-LUME-8520 Lumens Modular Passive Star Heat Sink Φ85mm.pdf
