EtraLED-LUME-130100 Lumens Modular Passive Star LED Heat Sink Φ130mm

Quantity:
  • EtraLED-LUME-130100 Lumens Modular Passive Star LED Heat Sink Φ130mm

  • pcs

  • 1pcs

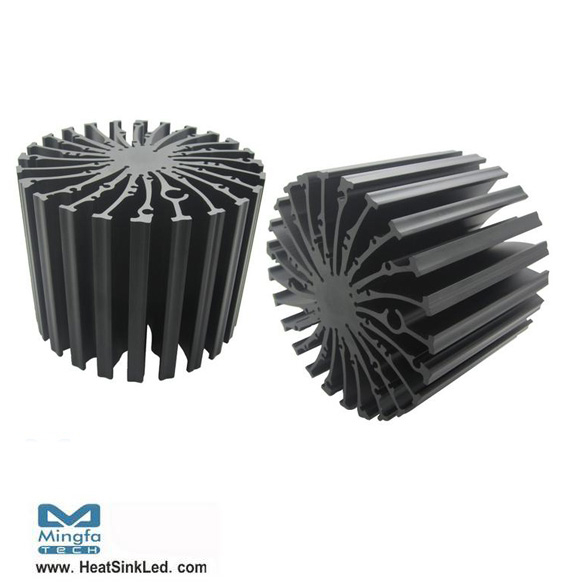

EtraLED-LUME-130100 Lumens Modular Passive Star LED Heat Sink Φ130mm

* The EtraLED-LUME-130100 Lumens Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Lumens LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 3600 to 9000 lumen.
* Thermal resistance range Rth 0.65°C/W.
* Modular design with mounting holes foreseen for direct mounting of Lumens ERC2530,ERC2540,ERC3050 and ERC3070 LED engines.
* Diameter 130mm - standard height 100mm Other heights on request.
* Extruded from highly conductive aluminum.
