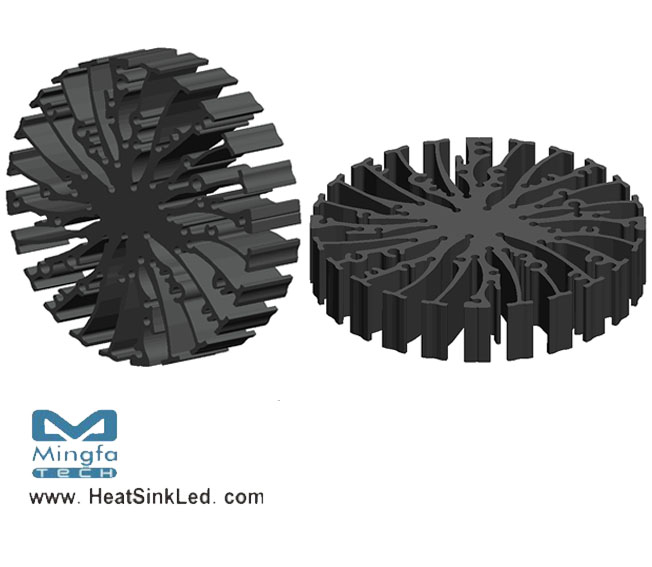

* The EtraLED-LUM-9620 LUMILEDS Modular Passive LED Coolers are specifically designed for luminaires using the LUMILEDS LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1800 to 3300 lumen.
* Thermal resistance range Rth 1.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of LUMILEDS Luxeon K and LueonCOB engines.
* Diameter 96mm - standard height 20mm Other heights on request.
* Extruded from highly conductive aluminum.
