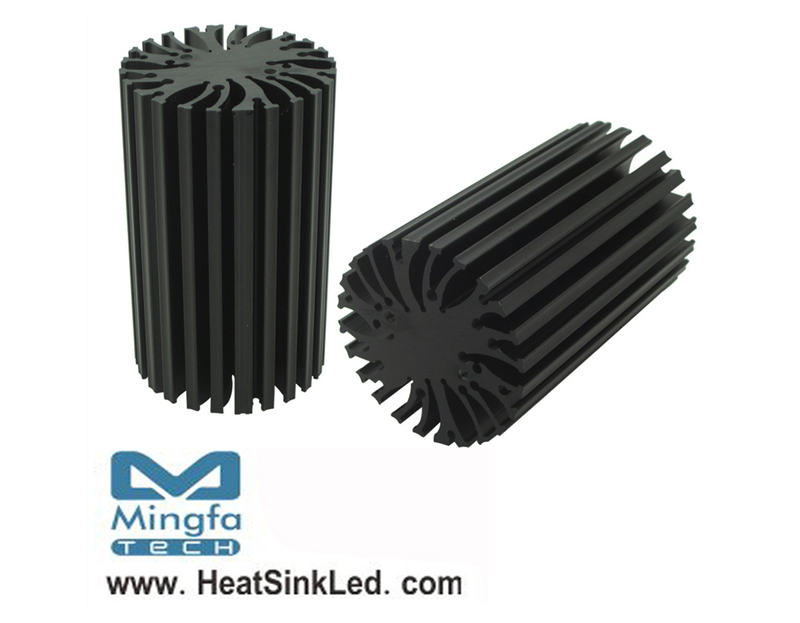

EtraLED-LUM-4880 for LumiLEDs Modular Passive Star LED Heat Sink Φ48mm

Quantity:

EtraLED-LUM-4880 for LumiLEDs Modular Passive Star LED Heat Sink Φ48mm

* The EtraLED-LUM-4880 LUMILEDS Modular Passive LED Coolers are specifically designed for luminaires using the LUMILEDS LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 800 to 1700 lumen.
* Thermal resistance range Rth 3.6°C/W.
* Modular design with mounting holes foreseen for direct mounting of LUMILEDS Luxeon K and LueonCOB engines.
* Diameter 48mm - standard height  80mm Other heights on request.

* Extruded from highly conductive aluminum.


Down PDF

EtraLED-LUM-4880 LumiLEDs Modular Passive Star Heat Sink Φ48mm.pdf
