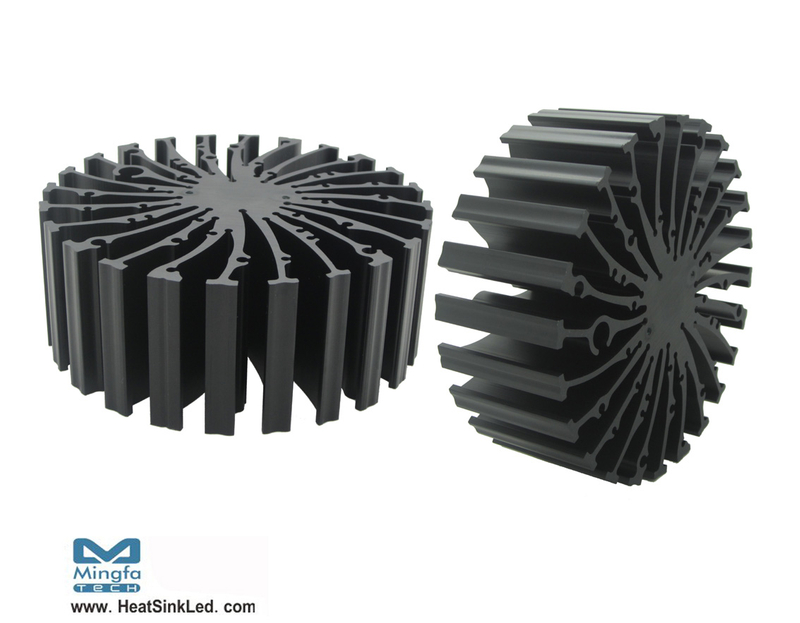

EtraLED-LUM-13050 LumiLEDs Modular Passive Star LED Heat Sink Φ130mm

* The EtraLED-LUM-13050 LUMILEDS Modular Passive LED Coolers are specifically designed for luminaires using the LUMILEDS LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1700 to 6700 lumen.
* Thermal resistance range Rth 0.9°C/W.
* Modular design with mounting holes foreseen for direct mounting of LUMILEDS Luxeon K and LueonCOB engines.
* Diameter 130mm - standard height 50mm  Other heights on request.
* Extruded from highly conductive aluminum.
