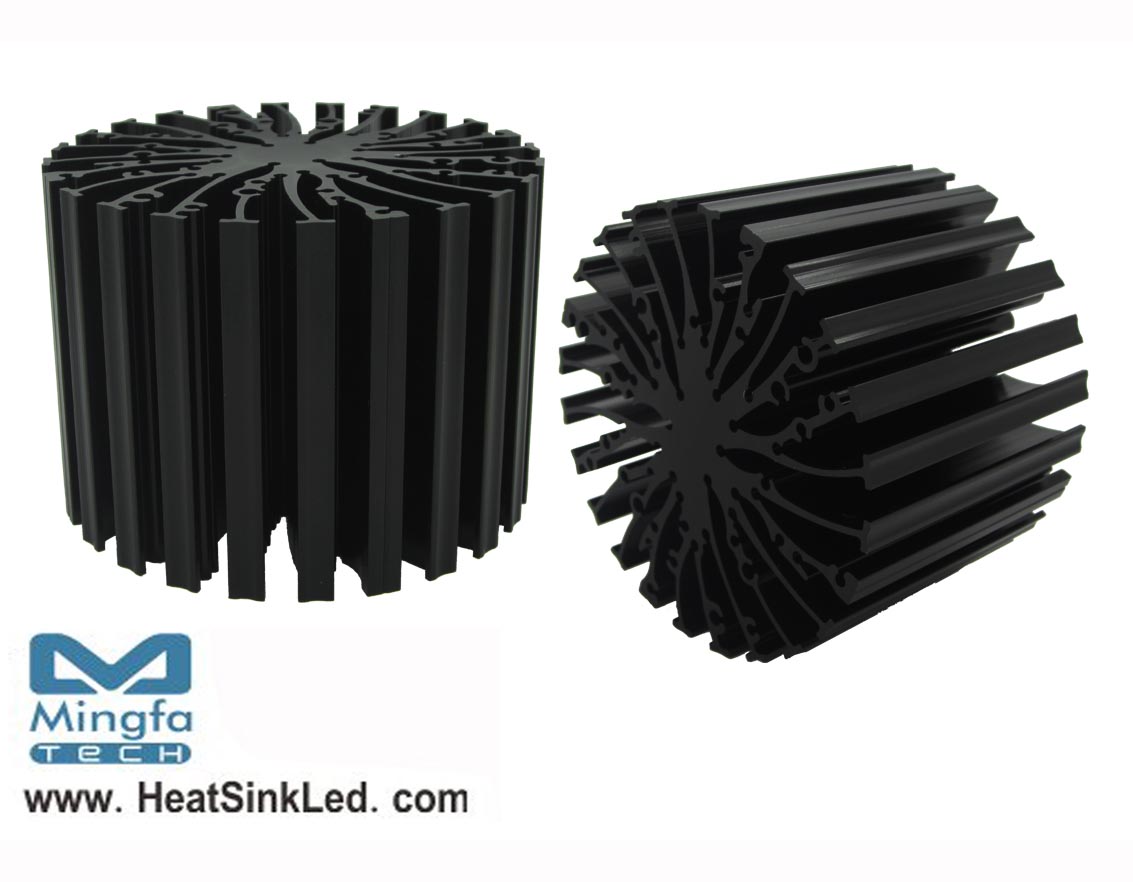

EtraLED-LG-9680 Modular Passive LED Cooler Φ96mm for LG Innotek
* The EtraLED-LG-9680 LG Innotek Modular Passive LED Coolers are specifically designed for luminaires using the LG Innotek LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1700 to 5700 lumen.
* Thermal resistance range Rth 0.92°C/W.
* Modular design with mounting holes foreseen for direct mounting of LG Innotek COB 17W/24W/40W LED engines.
* Diameter 96mm - standard height 80mm Other heights on request.
* Extruded from highly conductive aluminum.
Download PDF
EtraLED-LG-9680 LG Innotek Modular Passive Star Heat Sink Φ96mm.pdf
