EtraLED-LG-13020 Modular Passive LED Cooler Φ130mm for LG Innotek

Quantity:

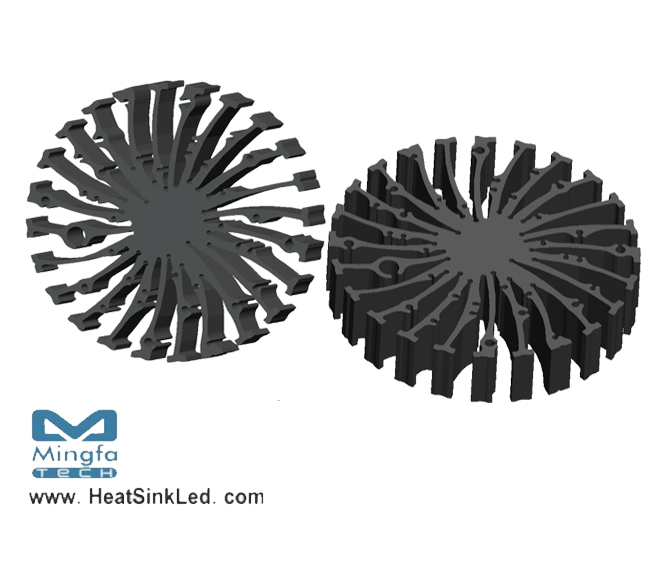

EtraLED-LG-13020 Modular Passive LED Cooler Φ130mm for LG Innotek

* The EtraLED-LG-13020 LG Innotek Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the LG Innotek LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1500 to 5000 lumen.
* Thermal resistance range Rth 1.1°C/W.
* Modular design with mounting holes foreseen for direct mounting of LG Innotek COB 13W/17W LED engines.
* Diameter 130mm - standard height 20mm  Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

EtraLED-LG-13020 LG Innotek Modular Passive Star Heat Sink Φ130mm.pdf
