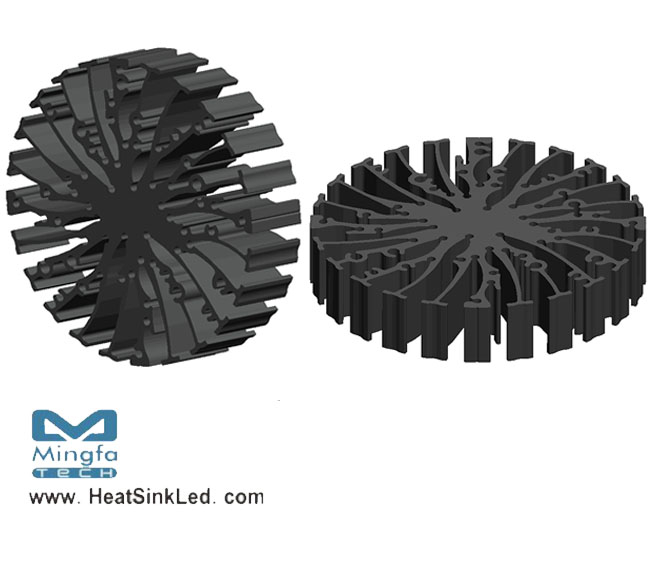

EtraLED-GE-9620 for GE lighting Modular Passive LED Cooler Φ96mm

Quantity:

EtraLED-GE-9620 for GE lighting Modular Passive LED Cooler Φ96mm

* The EtraLED-GE-9620 GE Lighting  Modular Passive LED Coolers are specifically designed for
   luminaires using the GE Lighting LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and
   thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1000 to 3200 lumen.
* Thermal resistance range Rth  1.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of GE lighting Infusion LED engines.
* Diameter 96mm - standard height 20mm  Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

EtraLED-GE-9620 GE Modular Passive Star Heat Sink Φ96mm.pdf
