EtraLED-EDI-8580 for Edison Modular Passive LED Cooler Φ85mm

Quantity:
  • EtraLED-EDI-8580 for Edison Modular Passive LED Cooler Φ85mm

  • pc

  • 1

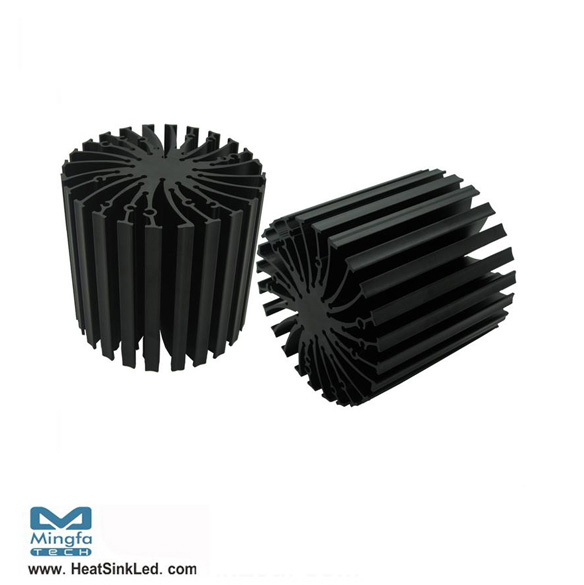

EtraLED-EDI-8580 for Edison Modular Passive LED Cooler Φ85mm

* The EtraLED-EDI-8580  Edison Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Edison LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1400 to 4500 lumen.
* Thermal resistance range Rth 1.3°C/W.
* Modular design with mounting holes foreseen for direct mounting of Edison EdiLex SLM and EdiLex II COB LED engines.
* Diameter 85mm - standard height 80mm  Other heights on request.
* Extruded from highly conductive aluminum.
