EtraLED-CRE-9620 for CREE Modular Passive LED Cooler Φ96mm

Quantity:

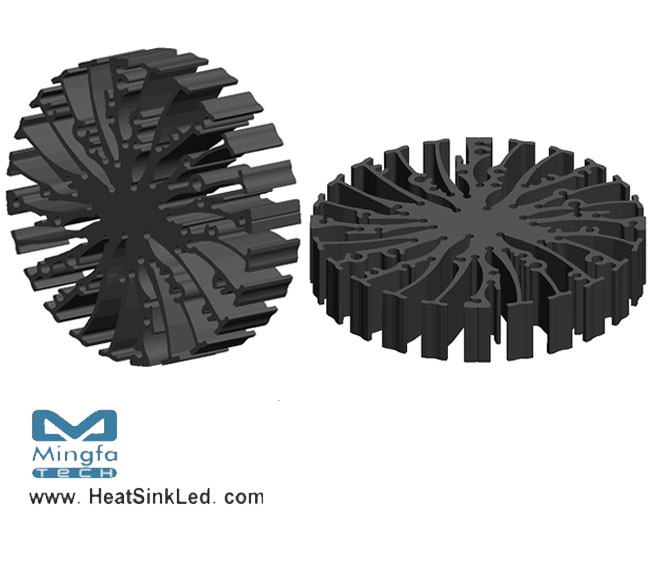

EtraLED-CRE-9620 for CREE Modular Passive LED Cooler Φ96mm

* The EtraLED-CRE-9620  Cree Modular Passive LED Coolers are specifically designed for luminaires
  using the Cree LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal
  performance matching the lumen packages.
* For spotlight and downlight designs from 800 to 3300.Lumen.
* Thermal resistance range Rth 1.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of Cree LxampCXA1304 ,1310,
 CXA1507,1512,1520, CXA1816 1820 LED Array  COB engines.
* Diameter 96mm - standard height 20mm  Other heights on request.
* Extruded from highly conductive aluminum.


Down PDF

EtraLED-CRE-9620 Cree Modular Passive Star Heat Sink Φ96mm.pdf
