EtraLED-CRE-4850 for CREE Modular Passive LED Cooler Φ48mm

Availability:
Quantity:

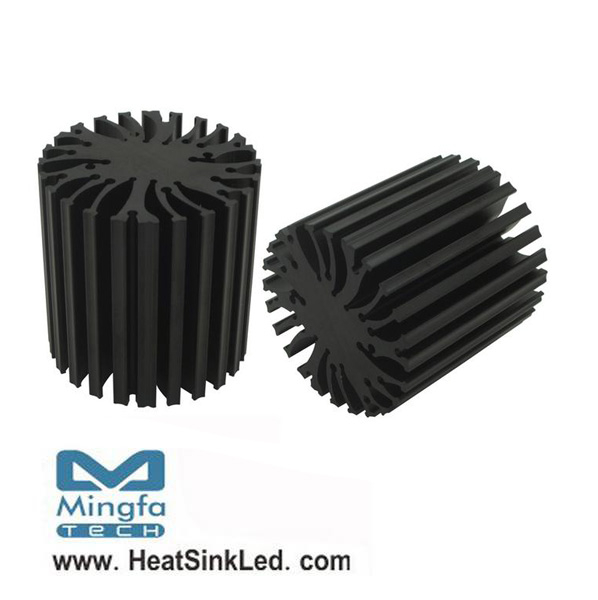

EtraLED-CRE-4850 for CREE Modular Passive LED Cooler Φ48mm

* The EtraLED-CRE-4850 Cree Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Cree LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 600 to 1400 lumen.
* Thermal resistance range Rth 4.2°C/W.
* Modular design with mounting holes foreseen for direct mounting of Cree Lxamp CXA13xx and CXA15xx LED engines.
* Diameter 48mm - standard height 50mm  Other heights on request.
* Extruded from highly conductive aluminum.


Down PDF

EtraLED-CRE-4850 Cree Modular Passive Star Heat Sink Φ48mm.pdf
