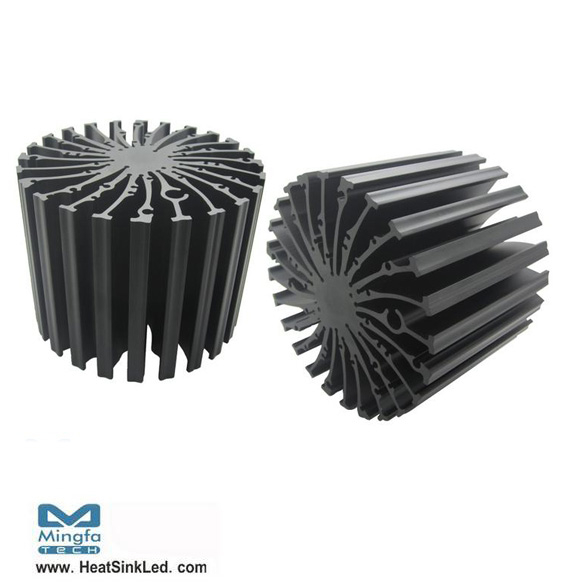

EtraLED-CRE-130100 for CREE Modular Passive LED Cooler Φ130mm

Quantity:
EtraLED-CRE-130100 for CREE Modular Passive LED Cooler Φ130mm

* The EtraLED-CRE-130100 Cree Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Cree LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2800 to 9000 lumen.
* Thermal resistance range Rth 0.65°C/W.
* Modular design with mounting holes foreseen for direct mounting of Cree Lxamp CXA18xx,CXA25xx and CXA30xx LED engines.
* Diameter 130mm - standard height 100mm  Other heights on request.
* Extruded from highly conductive aluminum.


Down PDF

EtraLED-CRE-130100 Cree Modular Passive Star Heat Sink Φ130mm.pdf
