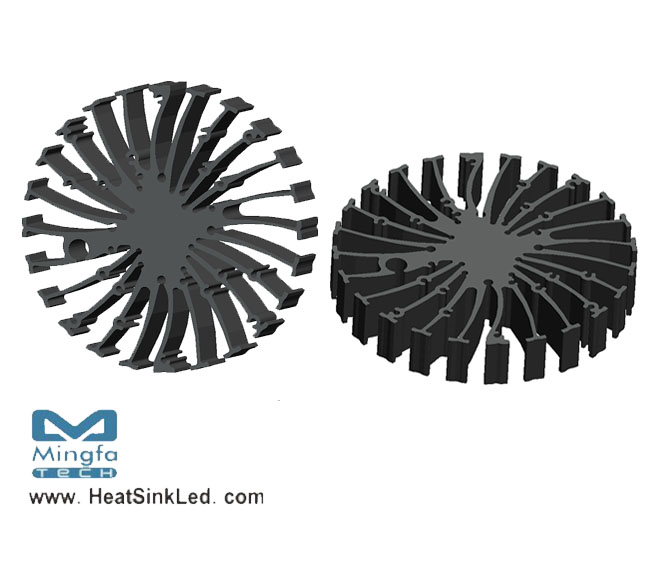

EtraLED-CRE-11020 for CREE Modular Passive LED Cooler Φ110mm

Quantity:
EtraLED-CRE-11020 for CREE Modular Passive LED Cooler Φ110mm

* The EtraLED-CRE-11020 Cree Modular Passive LED Coolers are specifically designed for luminaires using
  the Cree LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal
  performance matching the lumen packages.
* For spotlight and downlight designs from 200 to3300.umen.
* Thermal resistance range Rth 1.5°C/W.
* Modular design with mounting holes foreseen for direct mounting of Cree LxampCXA1304 ,1310,
 CXA1507,1512,1520, CXA1816 1820 LED Array  COB engines.
* Diameter 110mm - standard height 20mm  Other heights on request.
* Extruded from highly conductive aluminum.


Down PDF

EtraLED-CRE-11020 Cree Modular Passive Star Heat Sink Φ110mm.pdf
