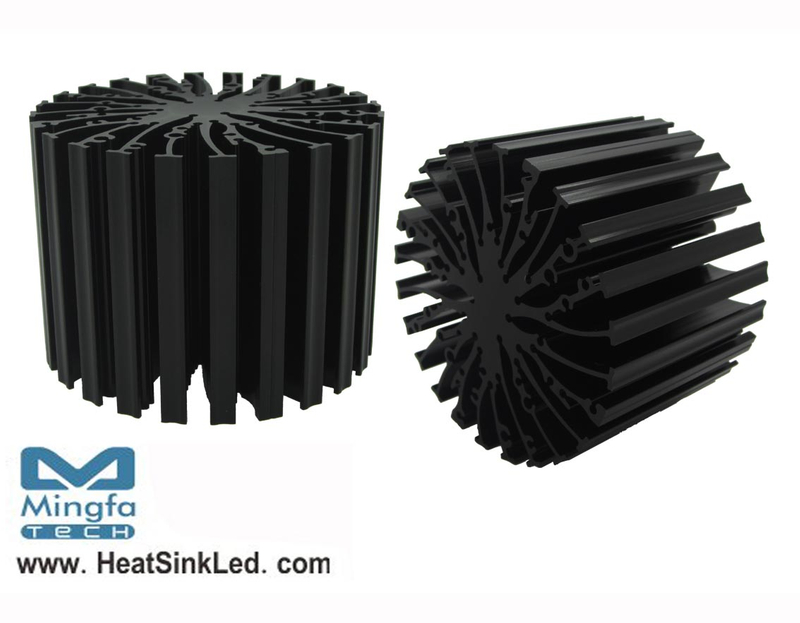

EtraLED-CIT-9680 for Citizen Modular Passive LED Cooler Φ96mm

Quantity:

EtraLED-CIT-9680 for Citizen Modular Passive LED Cooler Φ96mm

* The EtraLED-CIT-9680 Citizen Modular Passive LED Coolers are specifically designed for
   luminaires using the Citizen LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal
   performance matching the lumen packages.
* For spotlight and downlight designs from 1800 to 6000 lumen.
* Thermal resistance range Rth 0.92°C/W.
* Modular design with mounting holes foreseen for direct mounting of Citizen CLL030,CLL032,
  CLU034,CLL040 andCLL042 COB engines.
* Diameter 96mm - standard height 80mm Other heights on request.
* Extruded from highly conductive aluminum.


Down PDF

EtraLED-CIT-9680 Citizen Modular Passive Star LED Heat Sink Φ96mm.pdf
