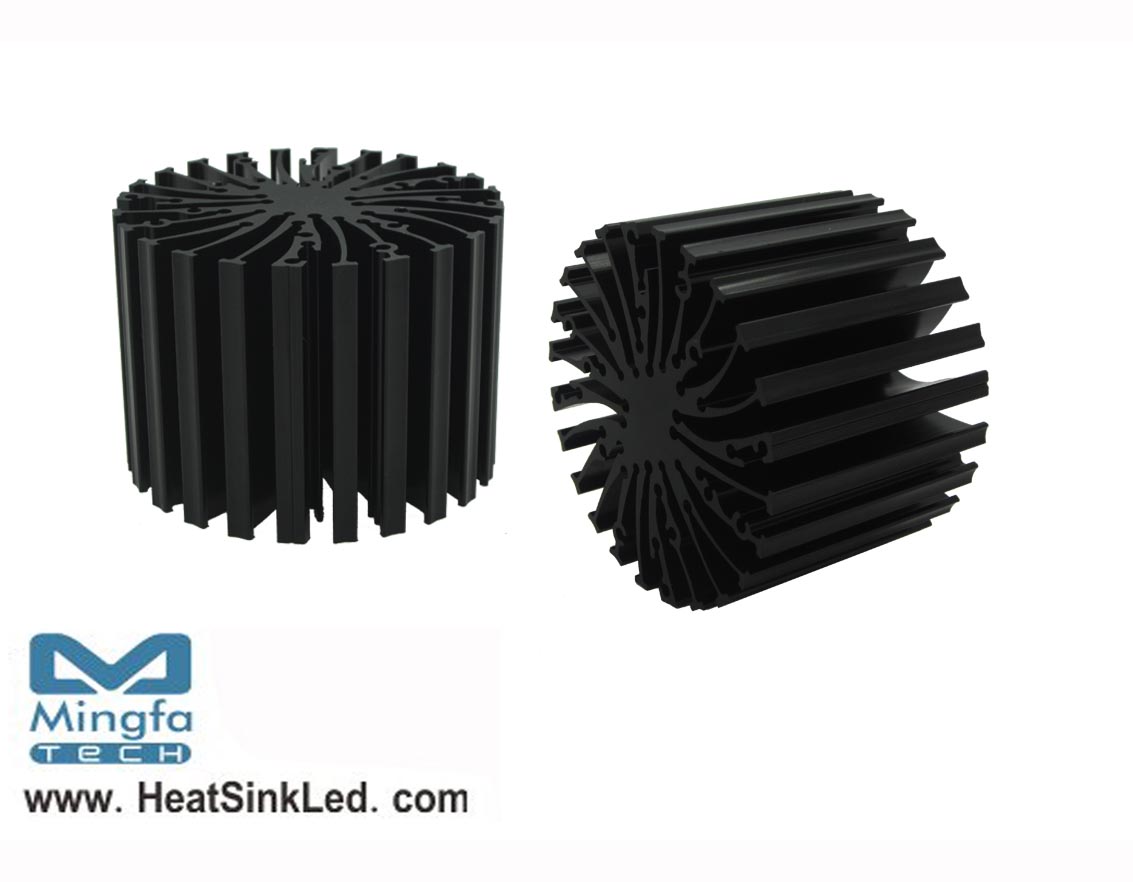

EtraLED-CIT-7050 for Citizen Modular Passive LED Cooler Φ70mm

Quantity:
EtraLED-CIT-7050 for Citizen Modular Passive LED Cooler Φ70mm

* The EtraLED-CIT-7050 Citizen Modular Passive LED Coolers are specifically designed for
   luminaires using the Citizen LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and
  thermal performance matching the lumen packages.
* For spotlight and downlight designs from 800 to 2700 lumen.
* Thermal resistance range Rth  2.2°C/W.
* Modular design with mounting holes foreseen for direct mounting of Citizen CLL030,
  CLL032 and CLU034 COB engines.
* Diameter 70mm - standard height 50mm  Other heights on request.
* Extruded from highly conductive aluminum.


Down PDF

EtraLED-CIT-7050 Citizen Modular Passive Star LED Heat Sink Φ70mm.pdf
