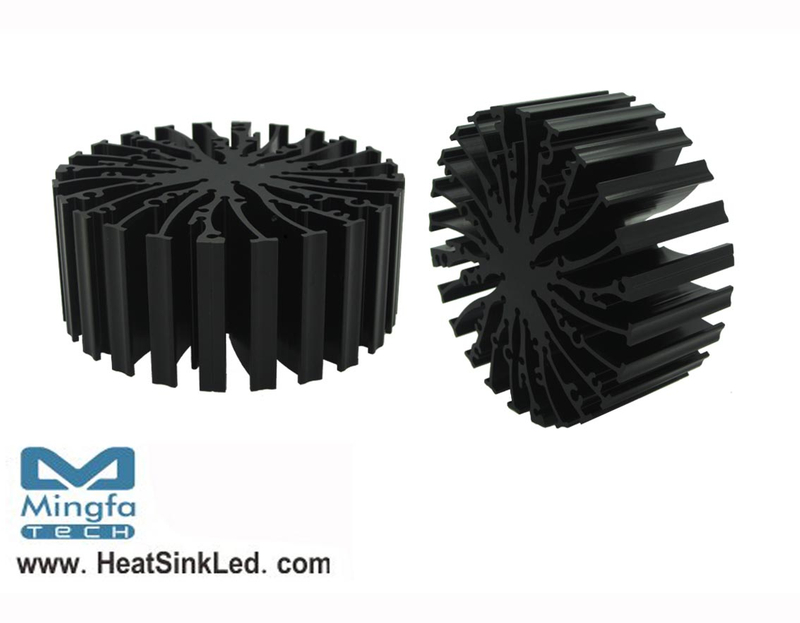

* The EtraLED-BRI-9650 Bridgelux Modular Passive LED Coolers are specifically designed for luminaires using the Bridgelux LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1400 to 4500 lumen.
* Thermal resistance range Rth 1.2°C/W.
* Modular design with mounting holes foreseen for direct mounting of bridgelux Vero 13,Vero 18,Vero 29 and RS Array Series COB engines.
* Diameter 96mm - standard height 50mm Other heights on request.
* Extruded from highly conductive aluminum.
