EtraLED-BRI-9620 for Bridgelux Modular Passive LED Cooler Φ96mm

Availability:
Quantity:

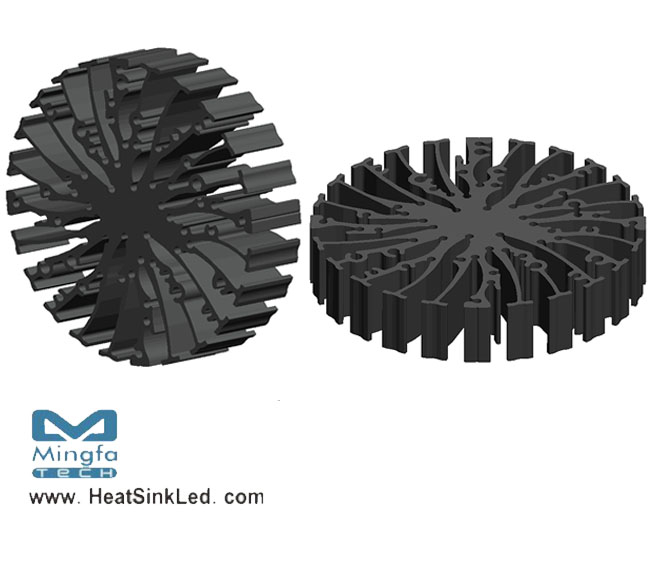

EtraLED-BRI-9620 for Bridgelux Modular Passive LED Cooler Φ96mm

* The EtraLED-BRI-9620 Bridgelux Modular Passive LED Coolers are specifically designed
  for luminaires using the Bridgelux LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and
   thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1800 to 3300 lumen.
* Thermal resistance range Rth 1.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of  Bridgelux ES Rectangle ES Star Array Series, Vero 13 and Vero18 COB engines.
* Diameter 96mm - standard height 20mm Other heights on request.
* Extruded from highly conductive aluminum.


Down PDF

EtraLED-BRI-9620 Bridgelux Modular Passive Star LED Heat Sink Φ96mm.pdf
