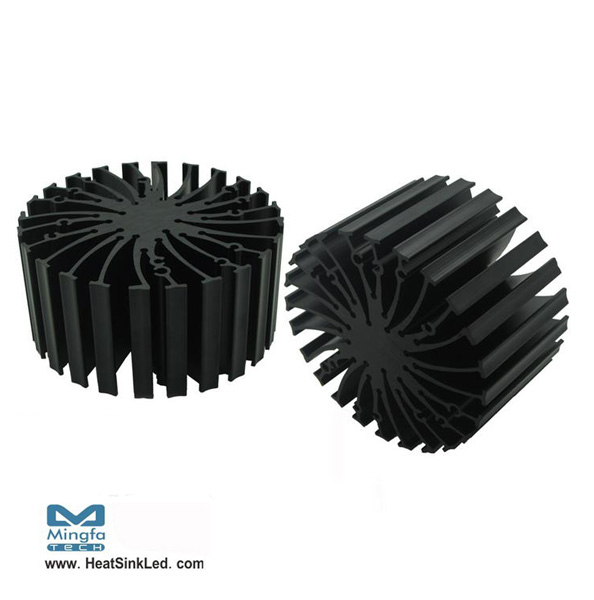

* The EtraLED-BRI-8550 Bridgelux Modular Passive LED Srat Heat Sinks are specifically designed for luminaires using the Bridgelux LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1200 to 4300 lumen.
* Thermal resistance range Rth 1.5°C/W.
* Modular design with mounting holes foreseen for direct mounting of Bridelux Array V6,V8,V10,Vero 10,Vero 13 ,Vero18 and ES Rectangle Arra LED engines.
* Diameter 85mm - standard height 50mm Other heights on request.
* Extruded from highly conductive aluminum.
