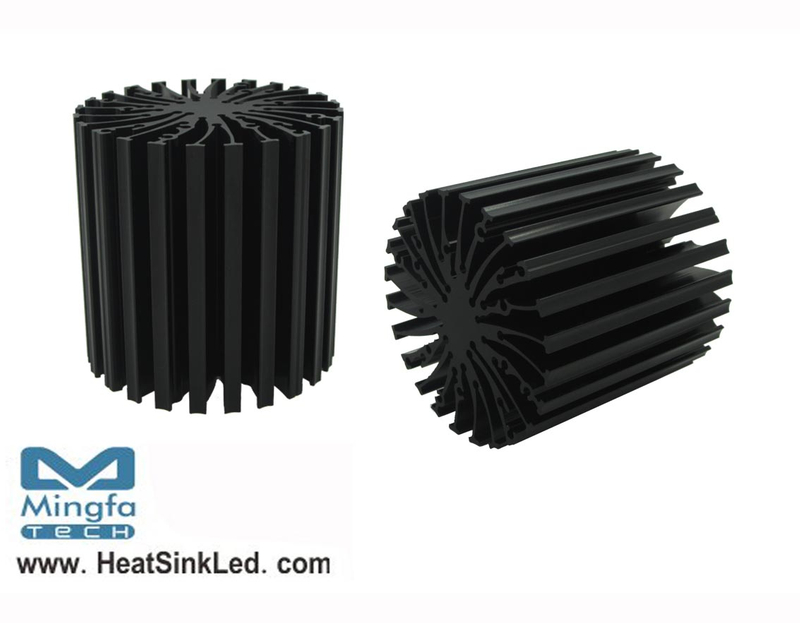

EtraLED-BRI-7080 for Bridgelux Modular Passive LED Cooler Φ70mm

Quantity:
EtraLED-BRI-7080 for Bridgelux Modular Passive LED Cooler Φ70mm

* The EtraLED-BRI-7080 Bridgelux Modular Passive LED Coolers are specifically
   designed for luminaires using the Bridgelux LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and
   thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1000 to 3300 lumen.
* Thermal resistance range Rth 1.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of  Bridgelux ES Rectangle ES Star Array Series,,Vero 13 and Vero18 COB engines.
* Diameter 70mm - standard height 80mm Other heights on request.
* Extruded from highly conductive aluminum.


Down PDF

EtraLED-BRI-7080 Bridgelux Modular Passive Star LED Heat Sink Φ70mm.pdf
