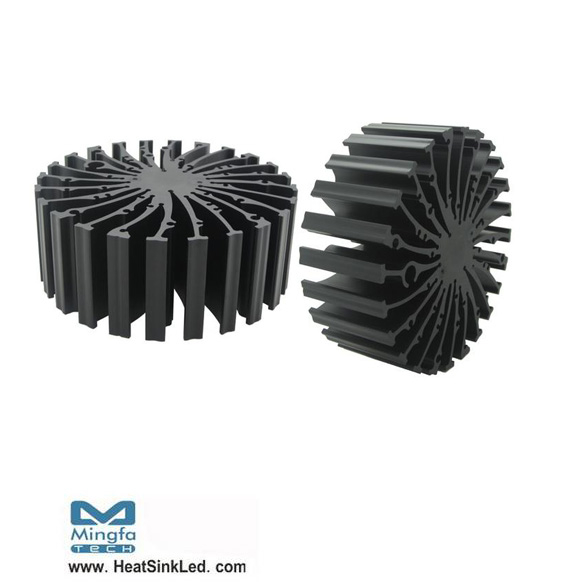

* The EtraLED-BRI-13050 Bridgelux Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Bridgelux LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2000 to 6500 lumen.
* Thermal resistance range Rth 0.9°C/W.
* Modular design with mounting holes foreseen for direct mounting of Bridelux Vero 13 ,Vero18,ES Rectangle Arra and RS Array Series LED engines.
* Diameter 130mm - standard height 50mm Other heights on request.
* Extruded from highly conductive aluminum.
