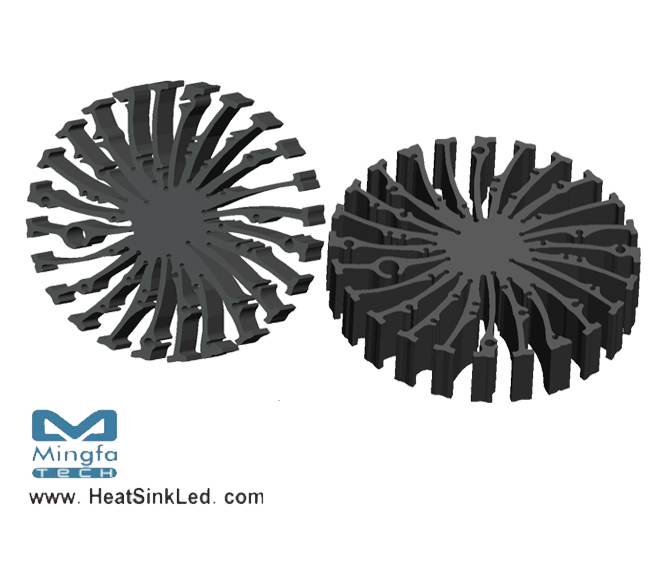

EtraLED-BRI-13020 for Bridgelux Modular Passive LED Cooler Φ130mm

EtraLED-BRI-13020 for Bridgelux Modular Passive LED Cooler Φ130mm
* The EtraLED-BRI-13020 Bridgelux Modular Passive LED Srat Heat Sinks are specifically designed for luminaires using the Bridgelux LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2000 to 4800 lumen.
* Thermal resistance range Rth 1.1°C/W.
* Modular design with mounting holes foreseen for direct mounting of Bridelux Array V6,V8,V10,Vero 10,Vero 13 ,Vero18 and ES Rectangle Arra LED engines.
* Diameter 130mm - standard height 20mm Other heights on request.
* Extruded from highly conductive aluminum.

Down PDF

EtraLED-BRI-13020 Bridgelux Modular Passive Star LED Heat Sink Φ130mm.pdf
