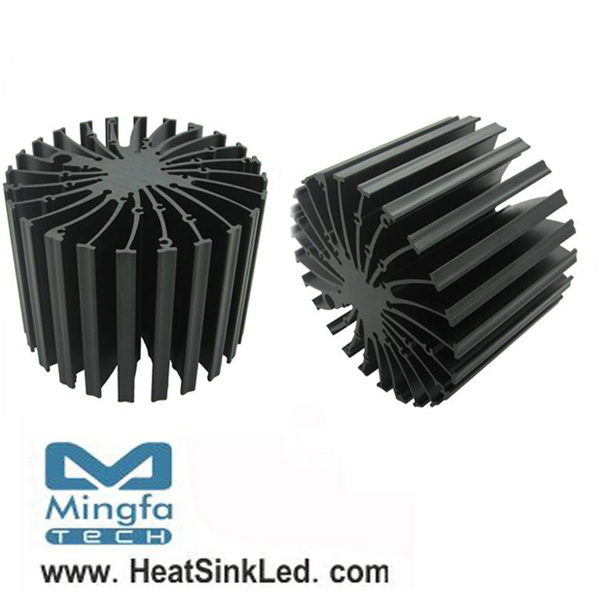

EtraLED-BRI-11080 for Bridgelux Modular Passive LED Cooler Φ110mm

EtraLED-BRI-11080 for Bridgelux Modular Passive LED Cooler Φ110mm
* The EtraLED-BRI-11080 Bridgelux Modular Passive LED Srat Heat Sinks are specifically designed for luminaires using the Bridgelux LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 3000 to 7400 lumen.
* Thermal resistance range Rth 0.9°C/W.
* Modular design with mounting holes foreseen for direct mounting of Bridelux Vero 13 ,Vero18 and ES Rectangle Arra LED engines.
* Diameter 110mm - standard height 80mm Other heights on request.
* Extruded from highly conductive aluminum.

Down PDF

EtraLED-BRI-11080 Bridgelux Modular Passive Star LED Heat Sink Φ110mm.pdf
