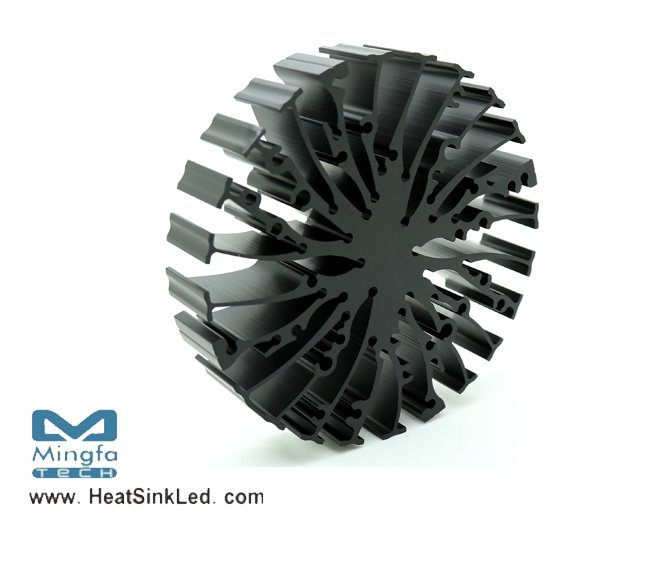

EtraLED-9620 Modular Passive LED Star Heat Sink Φ96mm
* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages.
* Thermal resistance range Rth 1.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of a wide range of LED modules and COB's:
* Diameter 96mm - Standard height 20mm , Other heights on request.
* Extruded from highly conductive aluminum.
2 standard colors - clear anodised - black anodised
Zhaga Book 3 Spot Light Modules Edison , Osram , Xicato ,Bridgelux , Citizen , Cree , Lumileds ,Tridonic Vossloh-Schwabe , LG , Seoul , Luminus , GE lighting , Prolight ,SHARP ,Samsung , Lustrous ,Philips .
Download PDF
