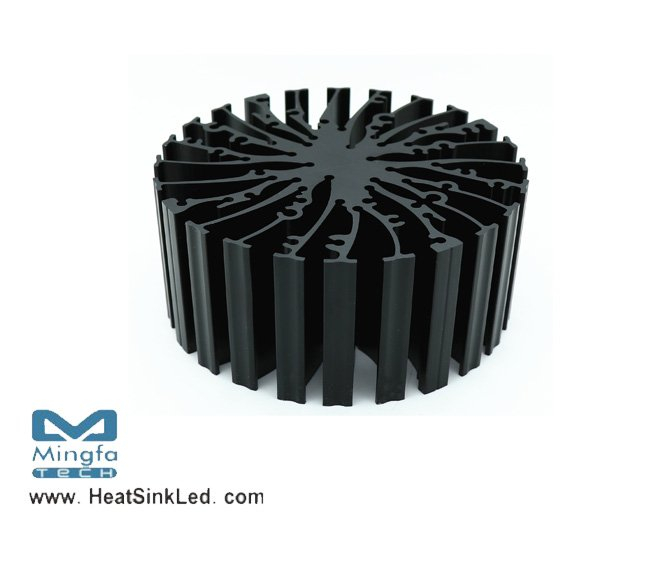

EtraLED-8550 Modular Passive LED Star Heat Sink Φ85mm
* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages.
* Thermal resistance range Rth 1.5°C/W.
* Modular design with mounting holes foreseen for direct mounting of a wide range of LED modules and COB's:
* Diameter 85mm - Standard height 50mm , Other heights on request.
* Extruded from highly conductive aluminum.
2 standard colors - clear anodized - black anodized
Zhaga Book 3 Spot Light Modules Edison , Osram , Xicato , Bridgelux , Citizen , Cree , Lumileds, Tridonic , Vossloh-Schwabe , Seoul , LG , Lustrous , Prolight , Sharp , Samung , Luminus ,Philips .
