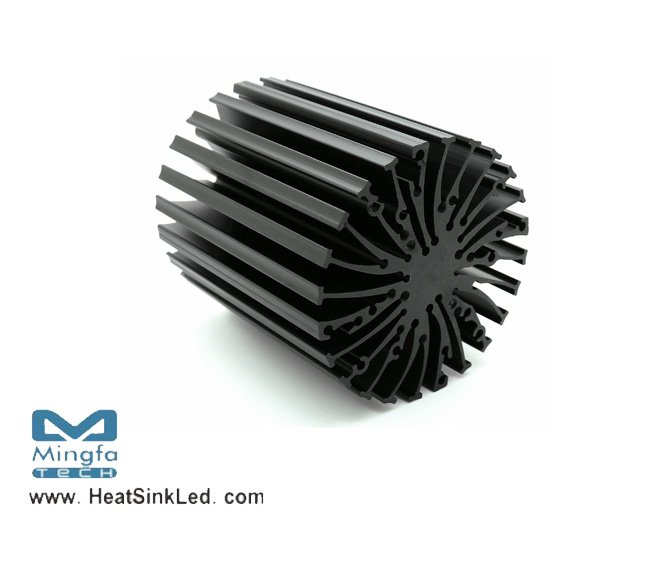

EtraLED-7080 Modular Passive LED Star Heat Sink Φ70mm

Quantity:

EtraLED-7080 Modular Passive LED Star Heat Sink Φ70mm


* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages.

*Thermal resistance range Rth 1.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of a wide range of
LED modules and COB's:

* Diameter 70mm - Standard height 80mm , Other heights on request.

* Extruded from highly conductive aluminum.

2 standard colors - clear anodized - black anodized
Zhaga Book 3 Spot Light Modules Xicato ,Edison , Osram , Bridgelux , Citizen , Cree ,Lumileds , Tridonic , Seoul , LG ,Vossloh ,Lustrous , Prolight ,Samung ,SHARP , Luminus ,Philips .


Download PDF

EtraLED-7080 Modular Passive LED Star Heat Sink Φ70mm.pdf
