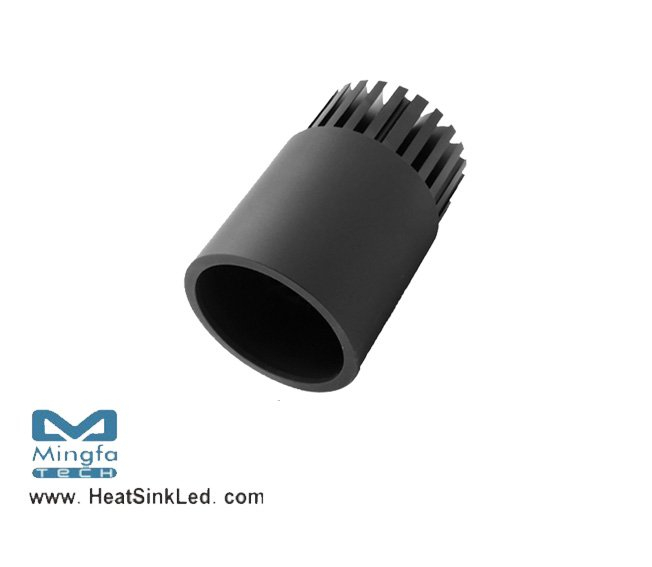

BuLED-50E-LUM LED light accessory to replace MR16 fitting for Lumileds Modulars

Availability:
Quantity:

BuLED-50E-LUM LED light accessory to replace MR16 fitting for Lumileds Modulars


* BuLED-50E LED light accessory includes one LED cooler and one LED housing to be assembled with Lumileds modules to replace MR16.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 500 to 1800 lumen.
* Thermal resistance range Rth 3.7°C/W.
* Heatsink Diameter 48mm - Standard height 50mm , Other heights on request.
* Housing Diameter 50mm - Standard height 50mm , Other heights on request.
* Modular design with mounting holes foreseen for direct mounting of LUMILEDS Luxeon K
and LueonCOB engines.

* Extruded from highly conductive aluminum.


Download PDF

BuLED-50E-LUM LED light accessory to replace MR16 fitting for Lumileds Modulars.pdf
