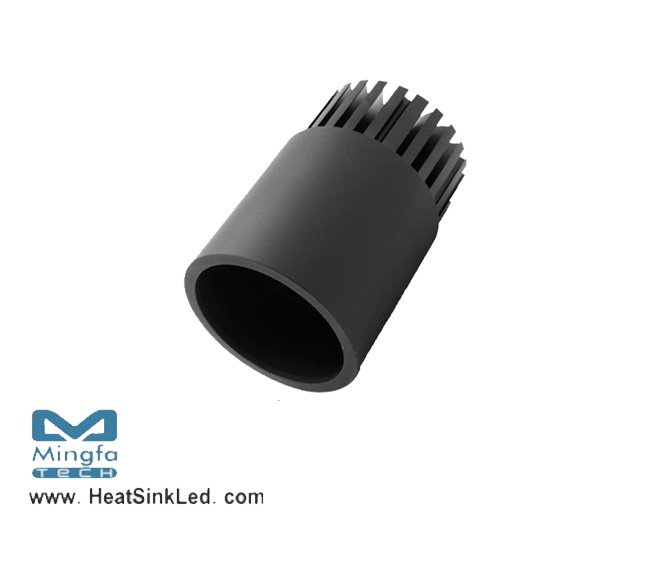

BuLED-50E-LG LED light accessory to replace MR16 fitting for LG Innotek Modulars
* BuLED-30E LED light accessory includes one LED cooler and one LED housing to be assembled with LG Innotek modules to replace MR16.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 500 to 1800 lumen.
* Thermal resistance range Rth 3.7°C/W.
* Heatsink Diameter 48mm - Standard height 50mm , Other heights on request.
* Housing Diameter 50mm - Standard height 50mm , Other heights on request.
* Modular design with mounting holes foreseen for direct mounting of LG Innotek COB 10W/13W LED engines.
* Extruded from highly conductive aluminum.
Download PDF
BuLED-50E-LG LED light accessory to replace MR16 fitting for LG Innotek Modulars.pdf
BuLED-50E-LG LED light accessory to replace MR16 fitting for LG Innotek Modulars
* BuLED-30E LED light accessory includes one LED cooler and one LED housing to be assembled with LG Innotek modules to replace MR16.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 500 to 1800 lumen.
* Thermal resistance range Rth 3.7°C/W.
* Heatsink Diameter 48mm - Standard height 50mm , Other heights on request.
* Housing Diameter 50mm - Standard height 50mm , Other heights on request.
* Modular design with mounting holes foreseen for direct mounting of LG Innotek COB 10W/13W LED engines.
* Extruded from highly conductive aluminum.
Download PDF
BuLED-50E-LG LED light accessory to replace MR16 fitting for LG Innotek Modulars.pdf
